Frame
Frame: 6061 T4-T6 alloy - Extruded & hydroformed variable thickness tubes - rear motor - tapered headtube - 27.5 Plus - 12x148mm Boost
Suspensions

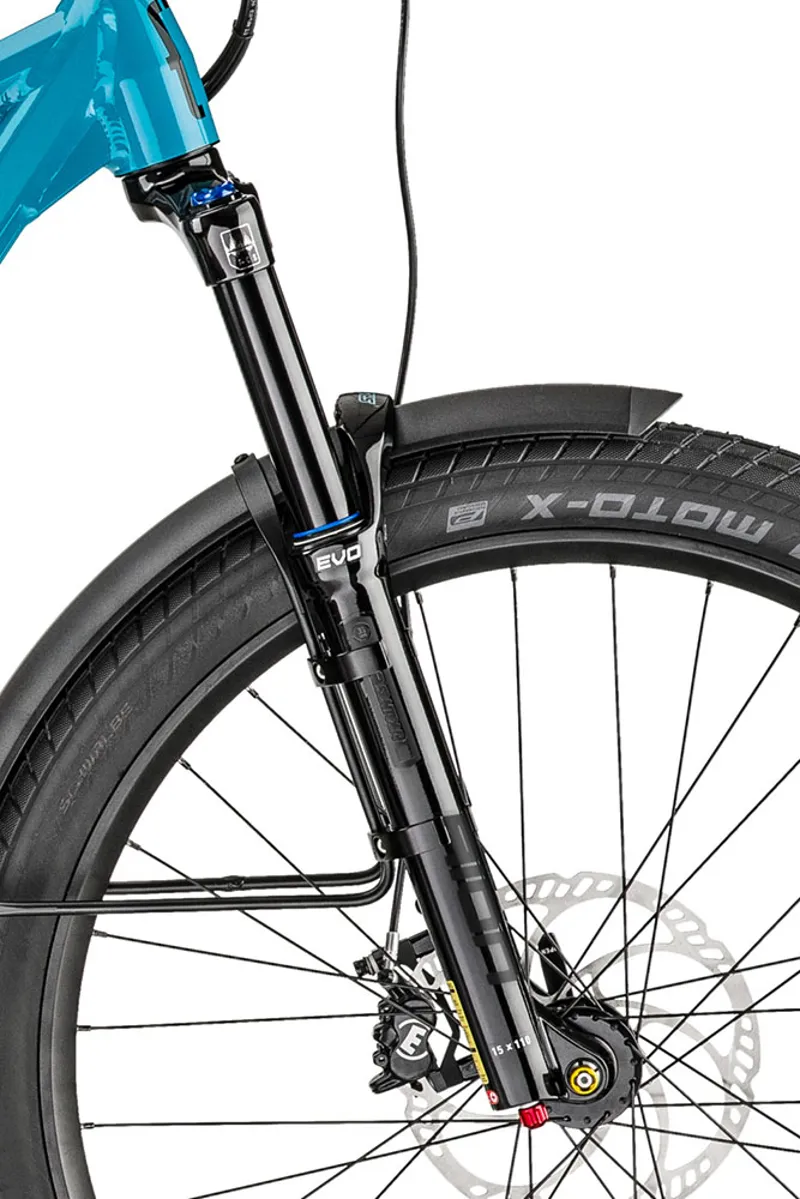

Fork: SR Suntour, Aion 36, 140mm of travel, EQ RC-PCS cartridge with low-speed compression and rebound adjustment, 27.5 Plus, Boost, Q-lock 15mm
Motor system

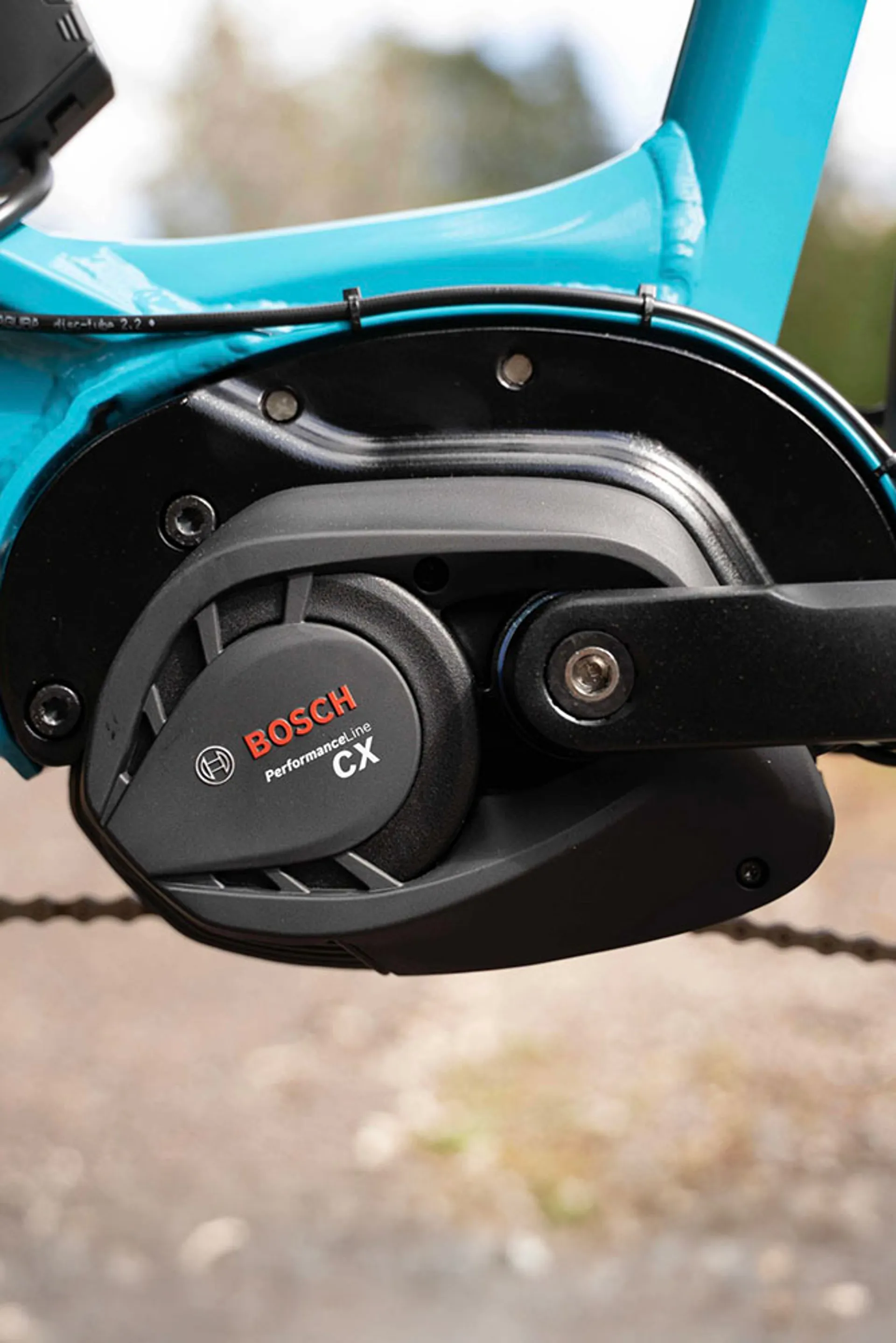

Motor: Bosch, Performance Line CX, Smart System, 85-100 Nm

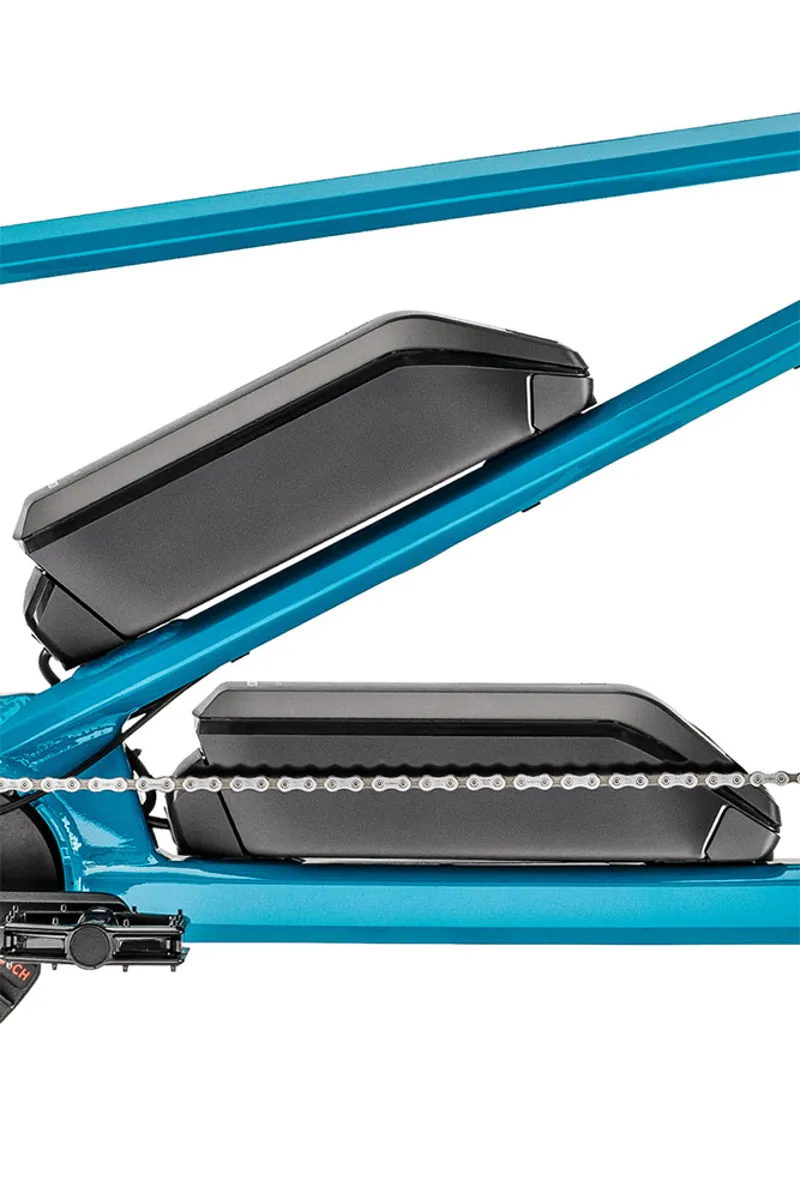

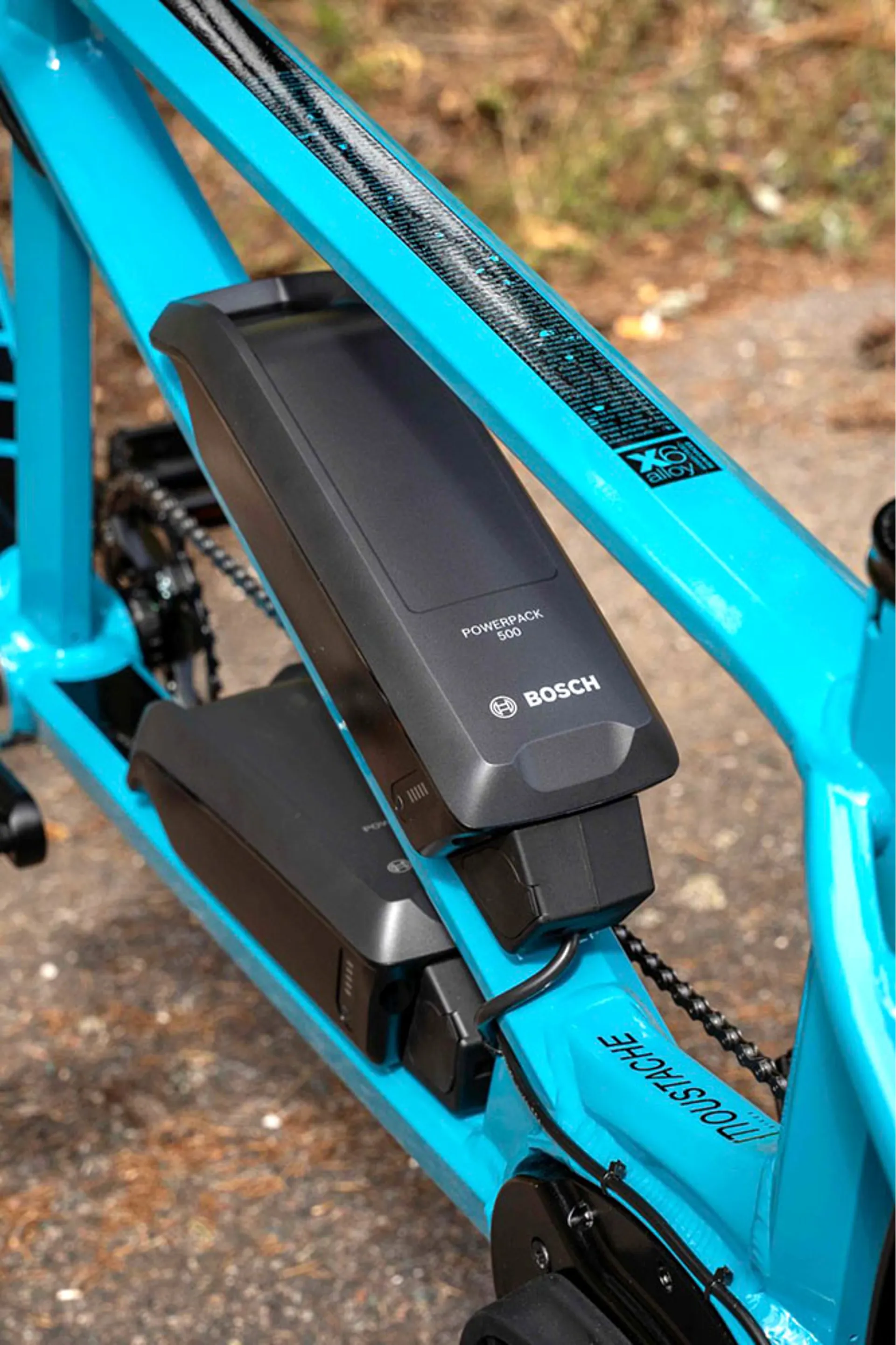

Battery: Bosch, PowerPack 545Wh, Smart System
Additional Battery: Bosch, PowerPack 545Wh, Smart System
Remote: Bosch, Purion 200, Smart System
Autonomy: 206km
Charger: Bosch, 4Ah
Transmission
Rear Derailleur: Shimano, CUES, RD-U6000-GS, 10/11-speed
Chainring: FSA, Narrow Wide, 34 teeth
Cassette: Shimano, CUES, CS-LG300 10-speed, 11-48T
Chain: Shimano, LG500, 130 links
Shifter: Shimano, CUES, SL-U6000-10R, 10-speed

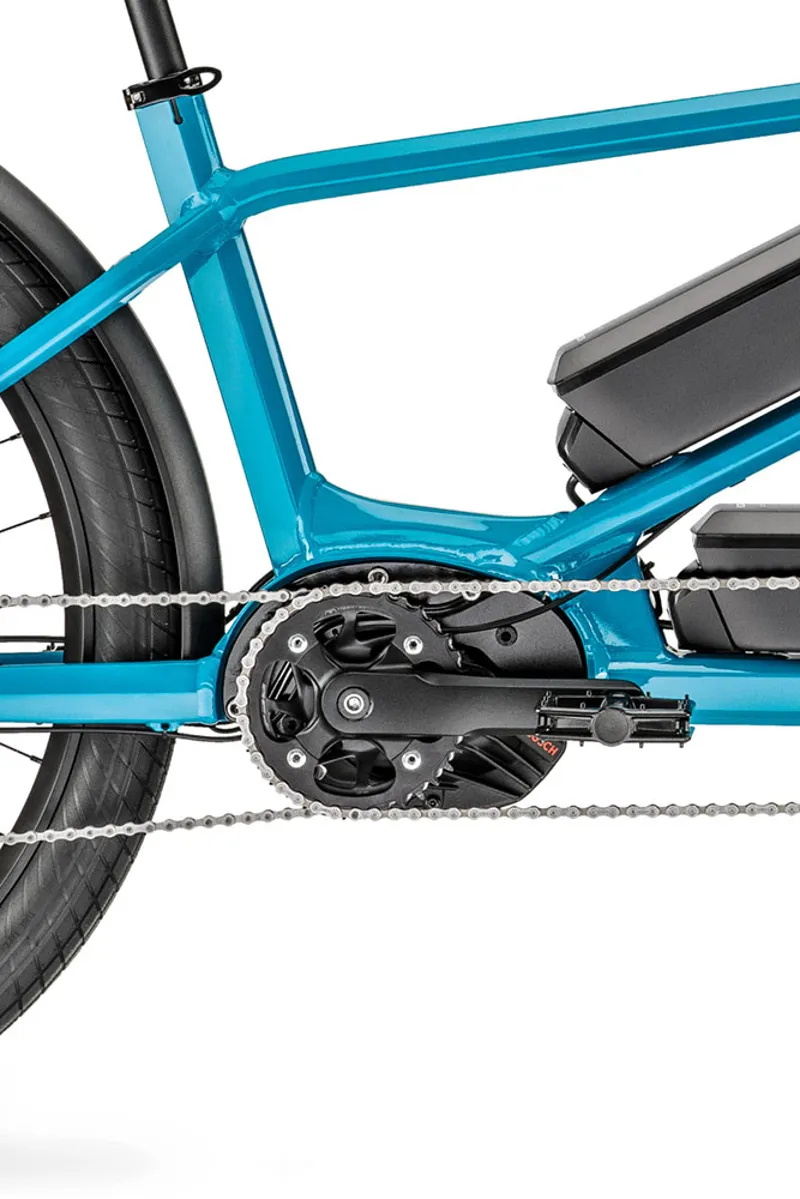

Cranks: Tandem specific forged aluminum Moustache cranks, 170 mm, synchronized - Relay chainring narrow/wide 36 teeth
Brakes
Front brake: Magura, MT5, hydraulic disc, 4 pistons
Rear Brake: Magura, MT5, hydraulic disc, 4 pistons
Front Rotor: Magura, Storm HC, 203mm
Rear Rotor: Magura, Storm HC, 203mm
Wheels
Front Hub: Moustache, 32H, 15x110mm, thru axle
Rear Hub: Moustache, 32H, 12x148mm, thru axle
Front rim: Moustache, asymmetric, alloy 6061E, welded, double wall, 32 holes, 27.5'', internal width 35mm
Rear rim: Moustache, asymmetric, alloy 6061E, welded, double wall, 32 holes, 27.5'', internal width 35mm
Front tyre: Schwalbe, Super Moto-X, 27.5x2.40
Cockpit
Handlebar: Front: Moustache, ergonomic, alloy, 760mm, 9° backsweep // Rear : Moustache, ergonomic, alloy, 680mm, 9° backsweep
Stem: Front: Moustache, 3D forged alloy, 65mm // Rear: Moustache, 3D forged alloy, adjustable 155/200mm
Headset: FSA, No 57B-1
Grips: Ergonomic, dual-density
Saddle: Moustache, Ergonomic

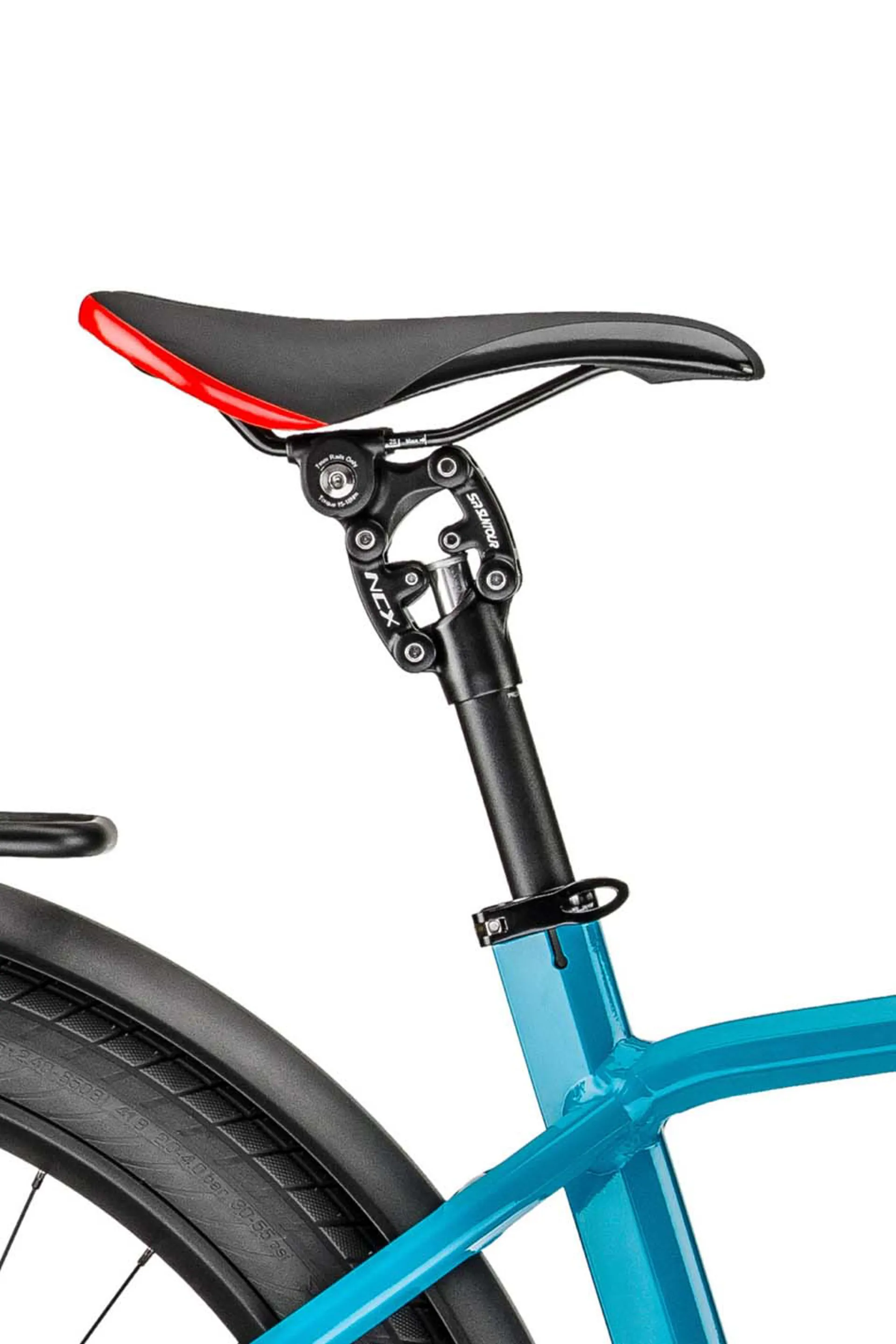

Seatpost: Front: Moustache, alloy, 27.2mm with 31.6mm adaptor, 350mm // Rear: Suntour NCX, suspension seatpost with 50mm of travel, parallelogram system 350mm x 27.2mm with 31.6mm adaptor
Seatclamp: Moustache, alloy, 34.9mm
Equipment
Front light: Trelock, Lighthammer, 100 lux, powered by main battery
Rear light: Spanninga, Presto2Guard, powered by main battery
Mudguard: Moustache, alloy, double wall design, w/alloy stays

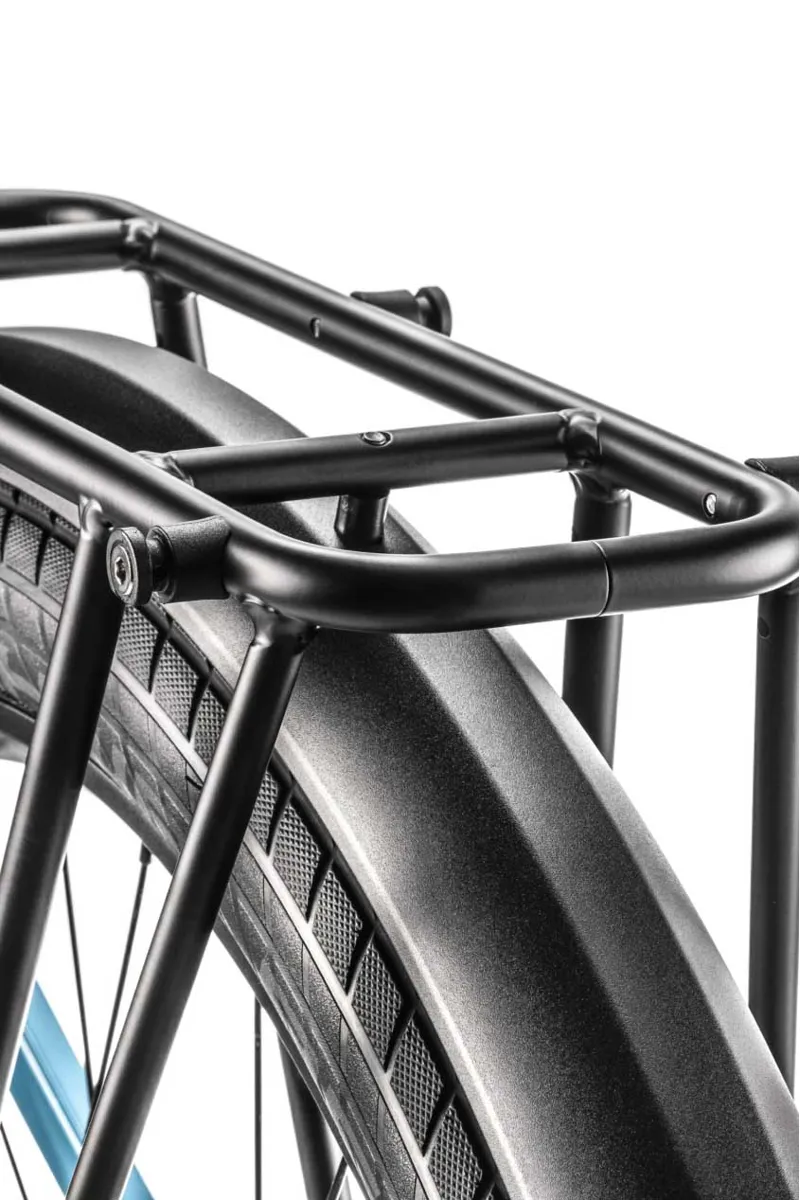

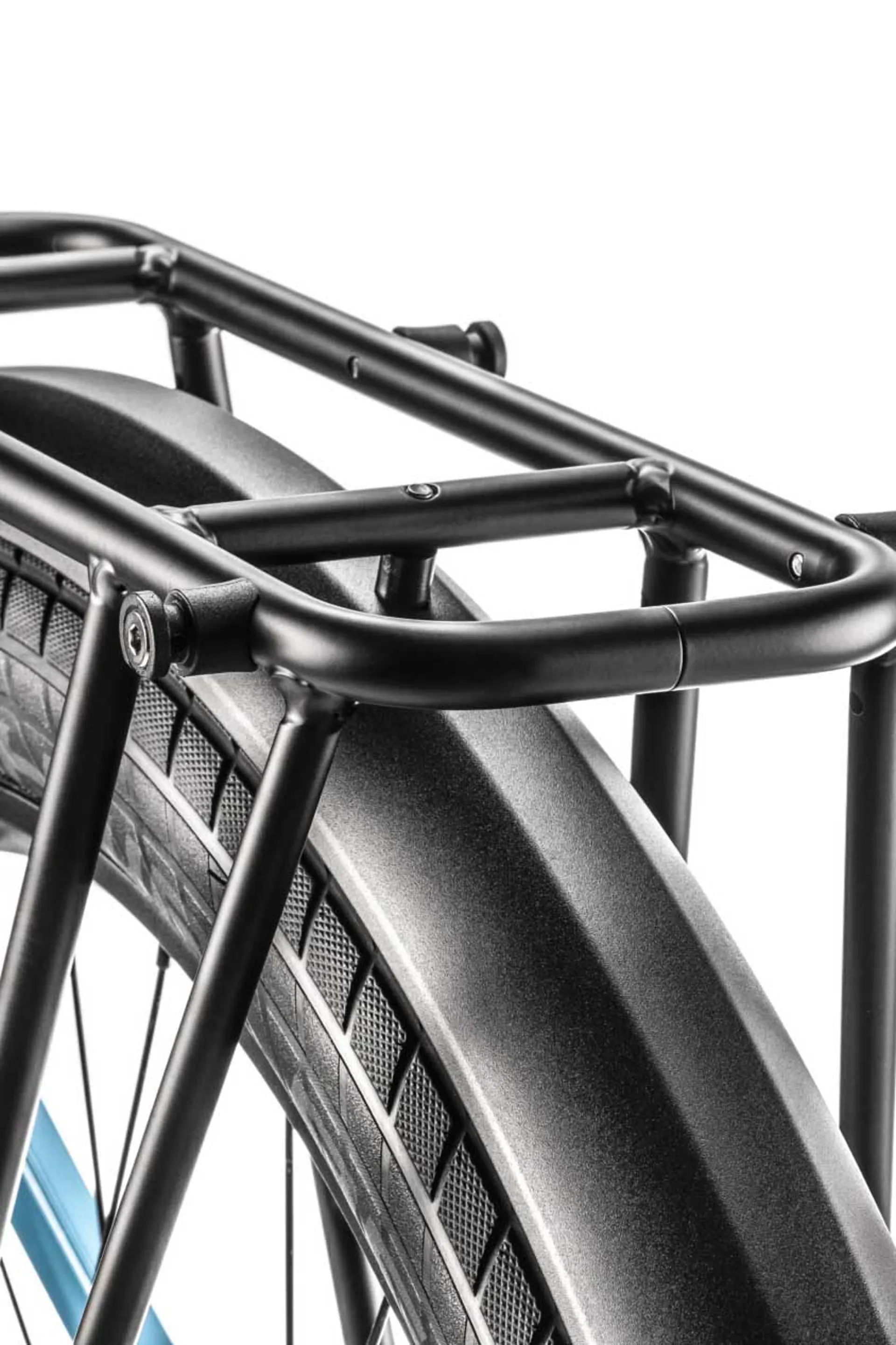

Carrier: Moustache, alloy, removable QL3 lateral fixation
Pedals: Alloy platform with reflectors
Features
Size: Universal
Color: Stone Grey glossy
Weight: 32.6kg
GVWR: 200kg
Warranty
Warranty: 5 years frame and fork Moustache Bikes - 2 years motor, battery
